Entering keys into the receiver can have unforeseen consequences.
When editing the receiver's system data yourself, there is a risk of "knocking down" its system settings.
If you fail to enter Biss keys or another encoding system, we recommend contacting a specialist for proper tuning or reflashing of the tuner.

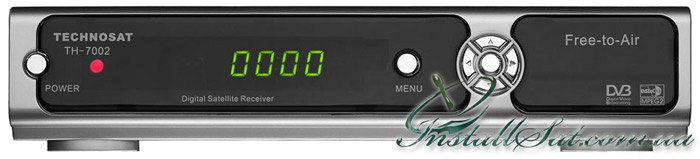

This instruction is suitable for entering Biss keys into Technosat (Satintegral) receivers TH-7002,TH-7002M, T-8002,T-8002M, THT-7000,T-5500, Tiger T-600 HD.
- To activate the encoding emulator in this receiver model, you need to turn on the tuner and, while on any channel, press the following buttons on the remote control in sequence: «F1» (the letter «H» should appear on the front panel of the tuner), then «0»,«0»,«0». A message should appear on the TV screen stating that the emulator is enabled. If the message indicates that the emulator is disabled, you need to repeat the steps again.

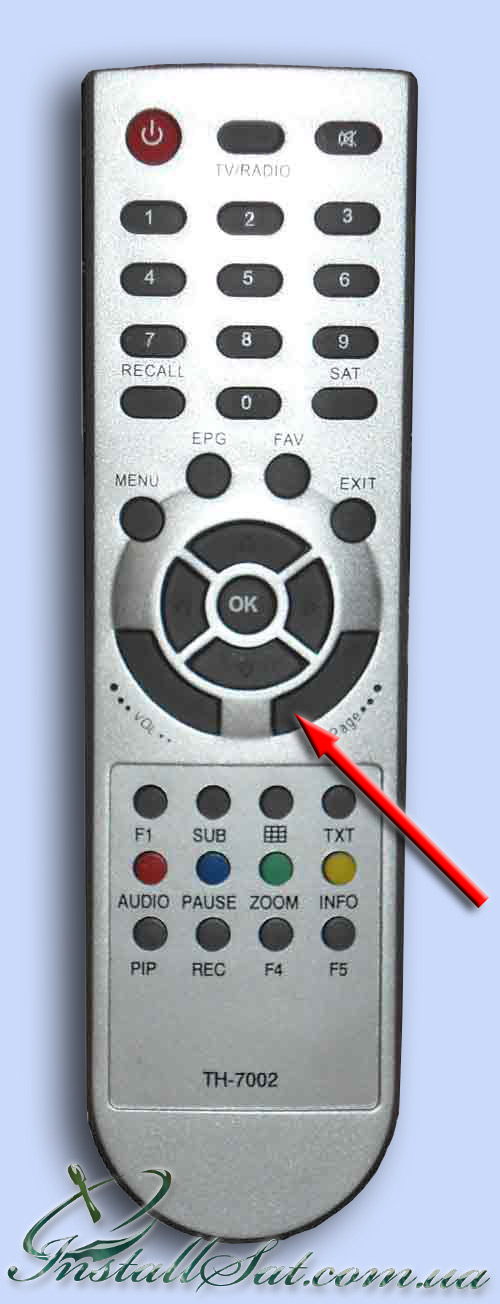

- Go to the channel you need to enter the key for. Press the bottom part of the «Page» button on the remote control, as shown in the image. A table with fields for key entry will appear on the TV screen.
- Press the red button on the remote to change the key. Do not confuse the red button with the receiver off button.
- Enter the required value in the key field. It should be noted that the left column of the table contains letter values. To enter a letter into the key, you should select the desired letter by moving the cursor in the left column using the «UP» and «DOWN» arrows on the remote. After selecting a letter, you need to press the «OK» button on the remote. Numerical values are entered on the digital keypad of the remote control.
- After entering the key, you must move the cursor to the bottom of the left column to the «OK» position and also press the «OK» button on the remote control.
- If the key is entered correctly, the image and sound should appear on the channel.
- Press the «EXIT» button to exit the key editor.
